- Continuous loop-powered 4-20mA operation
- Built-in transmitter
- Calibration method with one wire
- Hermetically sealed, vibration resistant construction
- 1/2” NPT thread standard, others available
- PFA clad probe or Stainless 316 bare
- Cable extension or M12 micro-connector
- Accuracy 1% of span for same dielectric

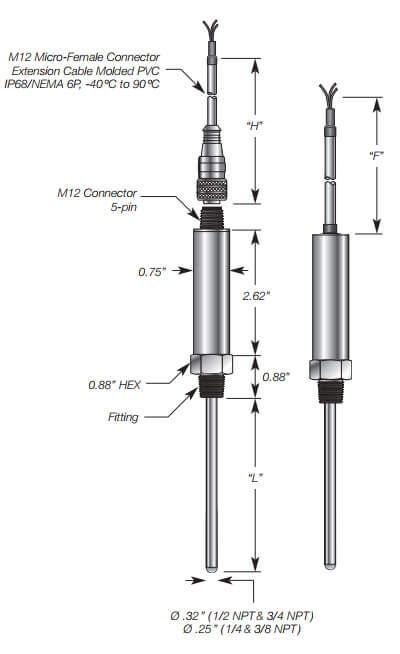

The INTEMPCO series LTX52 are one of the most compact, vibration resistant RF capacitnce level transmitters ever made available to the industry. They feature one-piece tubular design welded to a fitting and a level detection probe. LTX52 can be used in metallic tanks, as well as stationary or mobile equipment. In non-metallic tanks, a ground reference electrode must be used, or refer to our model LTX62.
Built-in electronics are potted into the tube portion above the fitting. Standard output is 4-20mA but others are available. Calibration is easily performed via one wire. The microprocessor-based electronics convert frequency change, detected by the probe, into a linear, highly accurate 4-20 mA signal.
This compact design makes installation and setup a simple task. The advanced signal conditioning circuitry greatly minimizes the adverse affects of poor dialectric and material coating on the probe.
Ideal for small tanks of all types, they can be used in virtually any liquid: conductive or non-conductive. One ideal application is measuremnt of fuel and oil levels of tanks in mobile equipment. Compact, rugged and hermetically sealed construction of LTX52 series sensors cannot be beat in performance.
- Diesel fuels, other fuels and oils in metallic or non-metallic tanks
- Water based liquids in metallic or non-metallic tanks
- Acids compatible with Stainless 316 and PFA Teflon® in metallic or non-metallic tanks
- MEK and other solvents
- Chemical holding tanks, metallic or non-metallic
- Measurement of liquid levels in mobile equipment
- On-site calibration will be required
- Not recommended where material dielectric varies due to change of temperature or pressure
