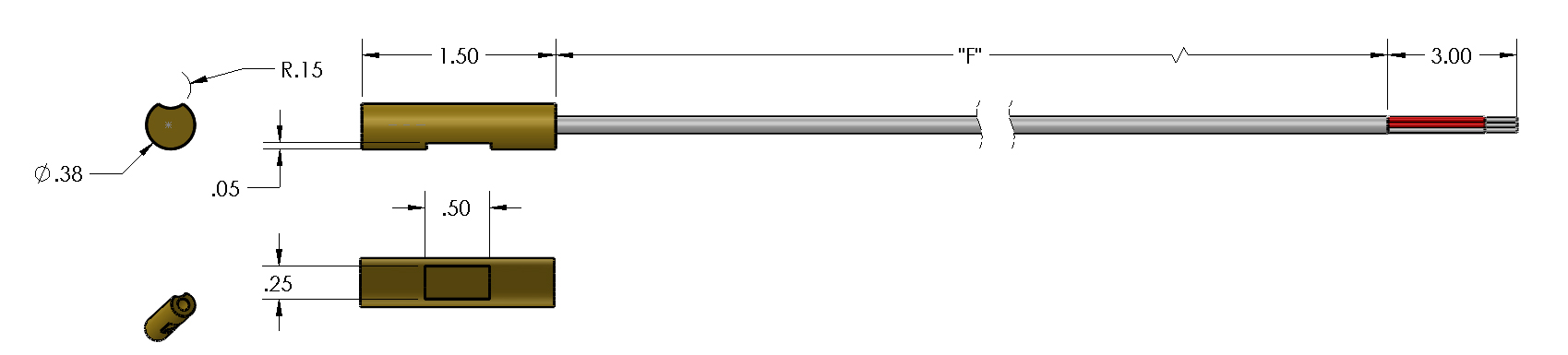

Surface Mount RTD - Brass Cylinder Pad Type
Temperature / Surface Mount Temperature Sensors / R344
Features
Description
Applications
Docs
Catalog Sheet
Custom Builder
Model Number
[select option]
R344
1
Temperature Range
[select option]
B : Low Temperature -20 to 100°C (-4/212°F)
L : Low Temperature -50 to 200°C (-58/392°F)
2
Element Type
[select option]
P : 100 ohms @ 0°C - a=0.00385 DIN EN 60751
T : 1000 ohms @ 0°C - a=0.00385 DIN EN 60751
3
Element Tolerance
[select option]
2 : ±0.06% (±0.15°C) @ 0°C Class A
4
RTD Circuit Type
[select option]
S2 : Single 2-wire
S3 : Single 3-wire
S4 : Single 4-wire
5
Mounting Pad Material
[select option]
B : Brass
6
Extension Cable Type
[select option]
PV : PCV insulation - stranded cond. 100°C (212°F) max.
TF : Teflon® insulation - stranded cond. 200°C (392°F)
TS : Teflon® with SS Overbraid 200°C (392°F) max
7
Extension Cable Length 'F'
From 6 to 200 feet
8
Options
[select option]
A : Single RTD
B : Matched Pair
9
Calibration Options
[select option]
N : None
C1 : CoC @ 0°C R vs T table NIST Tracable
C2 : CoC @ 0°C & 100°C R vs T table NIST Tracable
Comments / Specifications
