- Digital filtering of temperature and flow readings
- Temperature sensors calibration or reading offset setting allows to match perfectly two RTD’s
- Password protected configuration via Windows based software
- Multiple communication protocols
- Non-volatile on-board memory to store configuration and totals data
- On-board Real Time Clock
- Data logging on micro-SD card with user defines sample rate (optional)
- Multiple units for temperature, flow and energy rates and totals
- Power failure detection to save data
- Compact NEMA IP54 enclosure
-
- Get in touch with our team for more info & quote request by filling out the form at the bottom of the page.

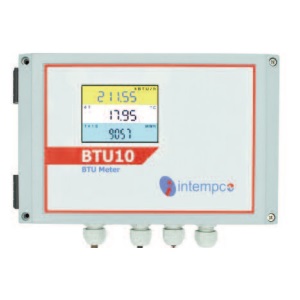

The BTU10 meter is a microprocessor based instrument designed to provide the energy consumption for heating and cooling installations based on signal inputs from two temperature sensors and a flowmeter.
A 320x240 pixels graphical color display is configured by the user to display supply and return temperatures (and/or delta T), flow rate, energy rate, total energy and total flow in many pre-programmed units. The USB and optionally RS-485 RTU, MODBUS/IP, BACnet/IP or BACnet/MS/TP provide high level communication for data acquisition.
Optionally data can be logged on on-board micro-SD card in .CSV format.
Battery powered unit (option – some configuration restrictions apply) may operate for 1 year without recharging.
The BTU10 unit can be purchased as a complete kit with flowmeter and two 3-wire 100 ohm RTD’s temperature sensors, factory programmed, calibrated and ready for use upon delivery. The flow sensor can accommodate any 4-20 mA or pulse flowmeter.
The DC power (max.120 mA0 is available on board to power the flowmeter.
Programming and RTD’s calibration is very easy and can be done using Windows based software.
Get in touch with our team for more info & quote request by filling out the form at the bottom of the page.
- Heating and Cooling Systems
-
