- Explosion Proof Enclosure is CSA, FM and ATEX Approved
- LDD01 plus transmitter outputs 4-20mA
- LDD02 alone outputs 4-20mA for 3-wire 100 ohm RTD only
- Bright Red 4-digit LED display easy to read
- Display in degree C or F with resolution 1/10 of a degree
- Optional RTD or T/C output
- 4-20 mA Output, HART Available

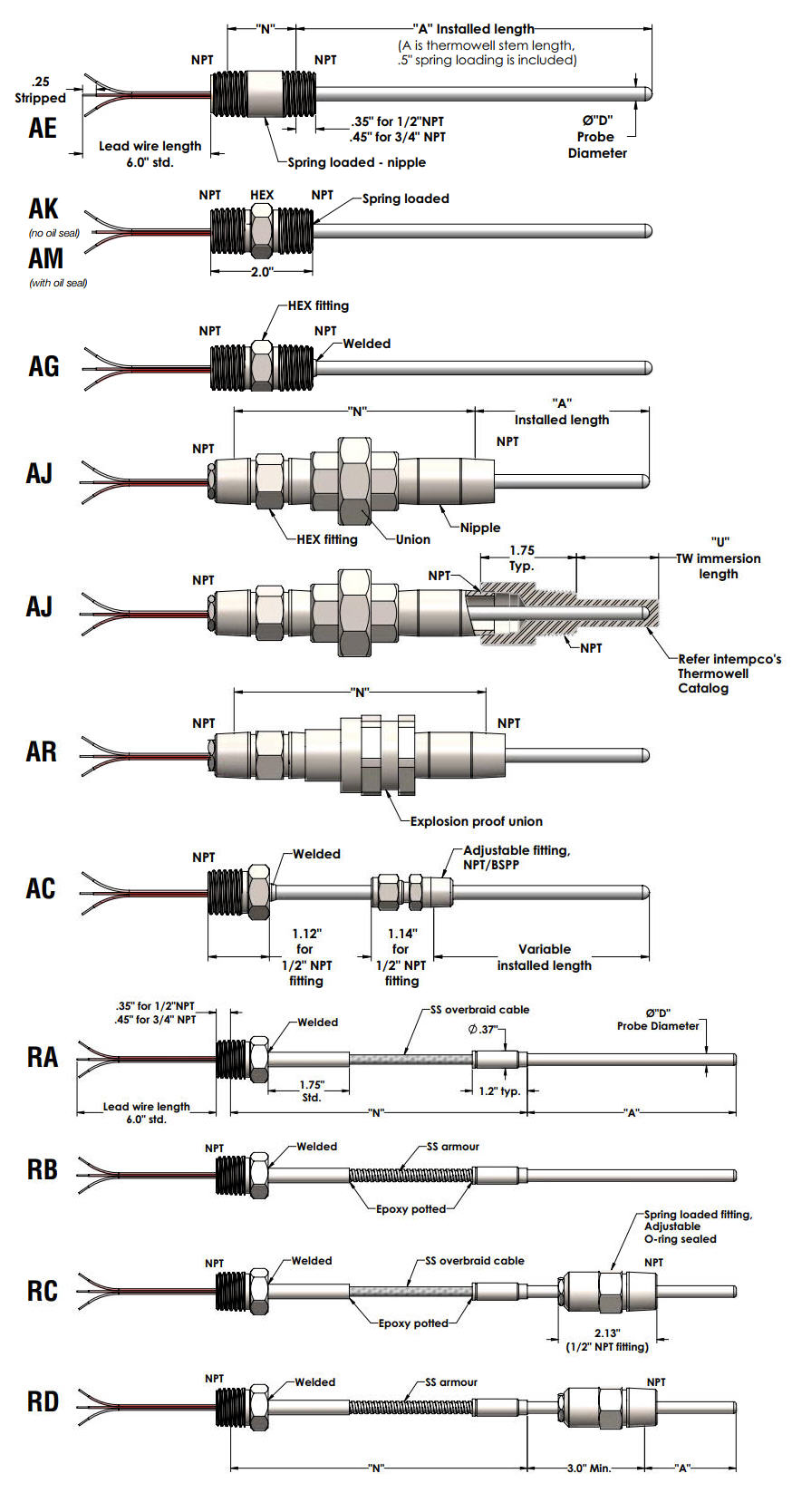

- Choose Direct Stem Mount or Remote Mount Option
- IP66 / NEMA 4X
The Intempco TDX02 is an explosion proof temperature transmitter with an easy to read LED display. It is a cost effective alternative to increasingly complex smart transmitters. Best fit for the applications where an explosionproof temperature transmitter with local display is required, but all the extra features of a smart transmitter are not. All models are factory calibrated for maximum accuracy. The TDX02’s 4-digit LED display can be field re-set via 3-button keypad in units of ºC or ºF with resolution to a tenth of a degree. TDXs may be ordered as direct mount or remote mount. Remote probes are available with many types of flexible extensions.
- For industrial and automotive applications
- Out-door environmental applications
