Miniature Thermowell With Integral Compression Fitting
Temperature / Thermowells / TW146

• Compact design for limited space applications
• All materials SS316/SS316L
• Welded construction
• Small diameter stem for better response
• Compression fitting style probe connection with ferrule and nut
• 3 Ferrule materials offered: Brass, Teflon and SS316L

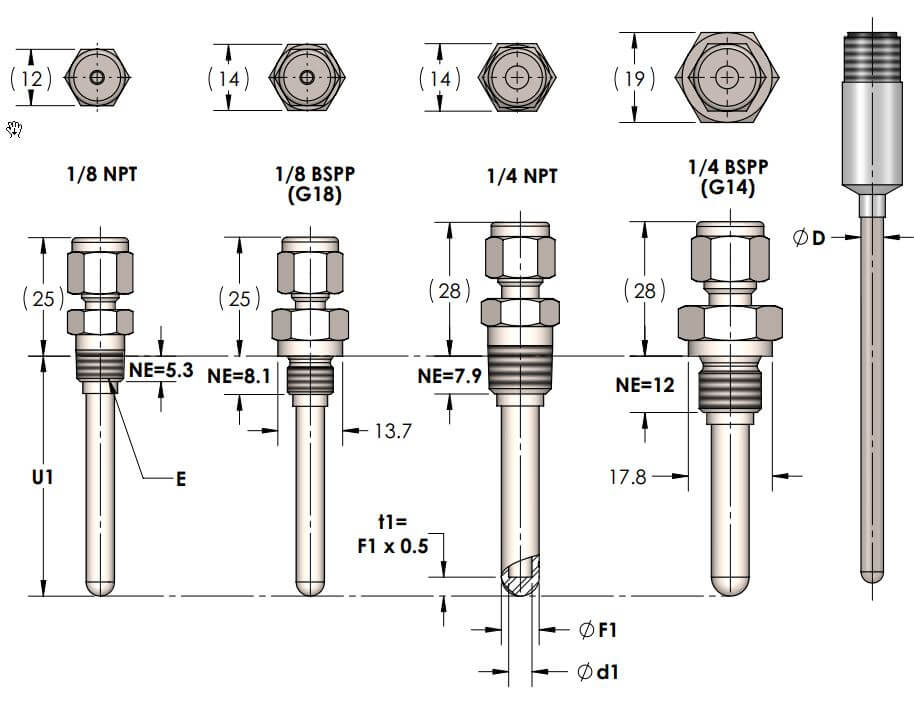

• Process Connections: 1/8-27 NPT, 1/4-18 NPT, 1/8 BSPP (G18) and 1/4 BSPP (G14)

TW146 Series is a tube style thermowell with an integrated compression fitting.

The design offers compact dimensions and lower mass for faster time response.

Designed for 3mm, 1/8 inch , 3/16 inch, 6mm and 1/4 inch diameter sensors, these wells offer a low cost solution when a rapid method is required for removing/installing sensors, such as for calibration and validation.
