Threaded Connection Welded Type
Temperature / Thermowells / TW116

Threaded Connection Welded Type Picture
  • Compact design for limited space applications
  • All materials SS316/SS316L/SS304/SS304L
  • Welded construction
  • Small diameter stem for better response
  • Process Connections (Standard): 1/2" NPT, 3/4" NPT and 1" NPT
  • BSPP,BSPT, SAE and other standards are available
  • Low cost solution for long immersion lenghts

TW116 Series is a tube style thermowell with a threaded connection welded type. The design offers compact dimensions and lower mass for faster time response. Designed for 1/4" and 3/8" probe

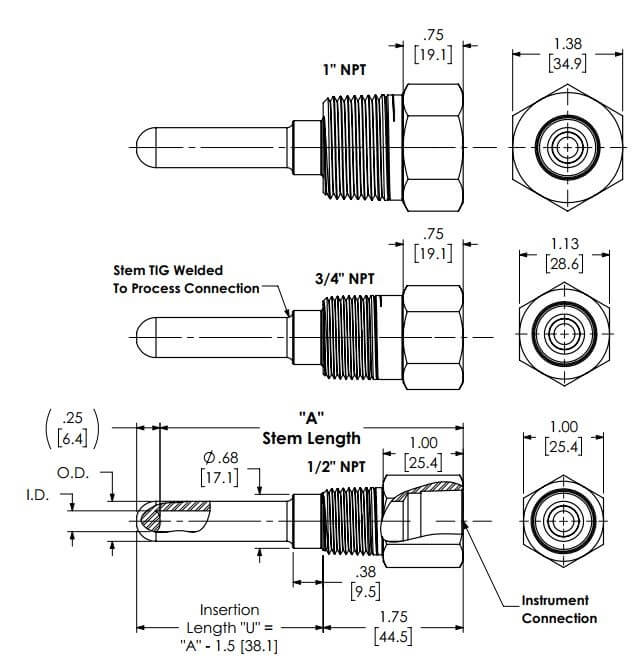

Threaded Connection Welded Type Details

  • Model Number

  • 1
    Fixed Code
    0 : Fixed code
  • 2
    Stem / Max. Pressure

  • 3
    Thermowell Material

  • 4
    Stem Length 'A'
      From 1 to 99 inches
  • 5
    Fixed Code
    0 : Fixed code
  • 6
    Process Connection Size

  • 7
    Instrument Connection Process

  • 7
    Instrument Connection Process

  • 7
    Instrument Connection Process

  • 8

    0
  • 9
    Options


  • Comments / Specifications
