- All Teflon construction temperature sensor
- PTFE extruded over SS316/SS304 probes and PFA clad SS316 probes available
- PTFE mounting fittings of many types and sizes available
- PTFE probe termination housing hermetically sealed
- M12 connector as electrical connection
- PFA cable and other types as electrical connection
- Inert to virtually all chemical reagents
- RTD, Thermocouple and Thermistor outputs available
- Analog 4-20mA and volatage outputs available
- Temperature switch output available as dry contacts and transistor
- Operating temperature from -196 °C to 250 °C
- Custom products configured to your exact needs
- High accuracy and high stability
- RTD temperature probe with integral electronics
- Compact design at low cost and easy installation

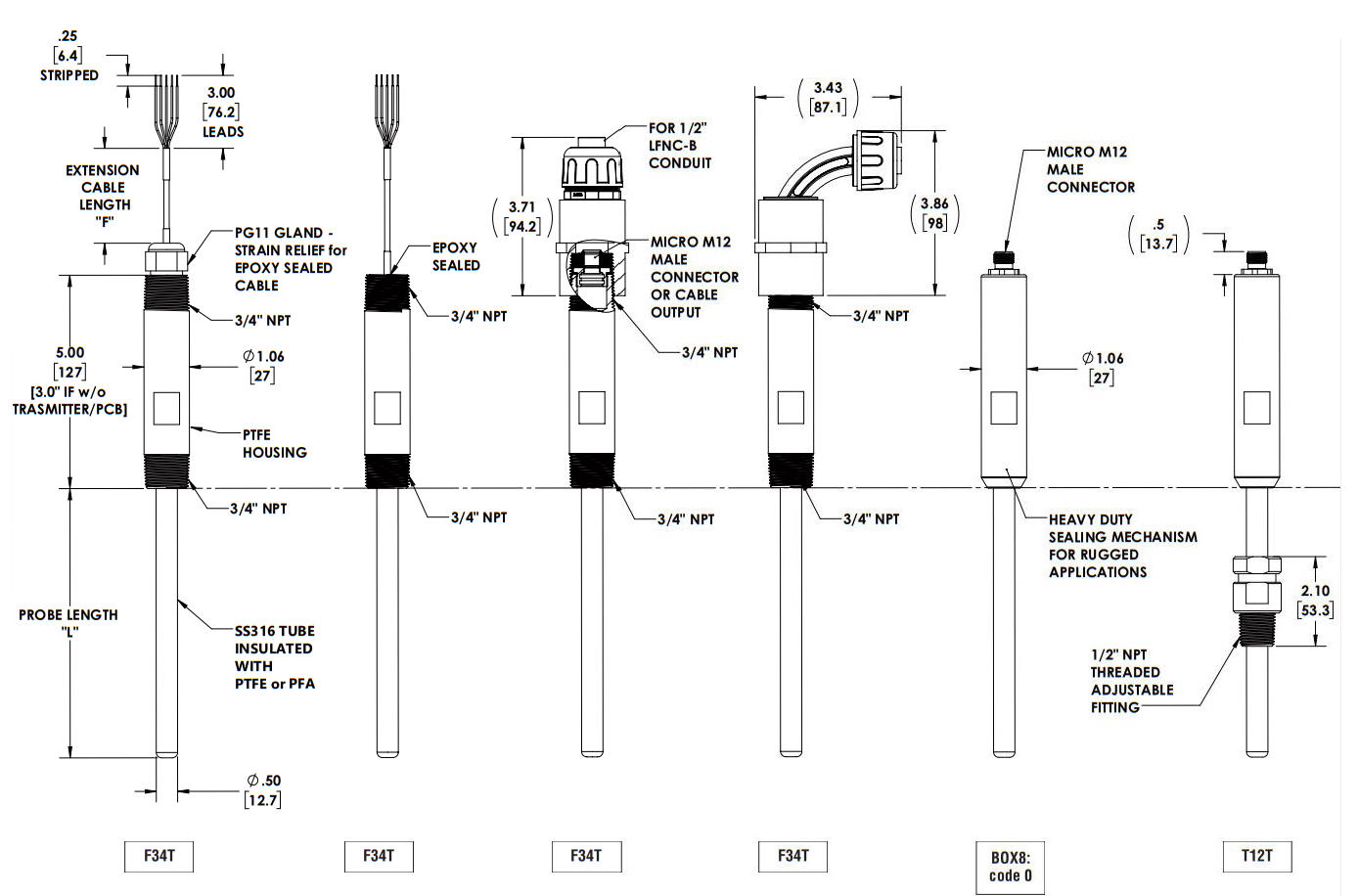

The R48 all teflon temperature sensors are virtually inert to all chemicals. The stainless steel core probe is PFA clad and the tip heat-welded closed. Heavy duty PTFE extruded probe is also available for most demanding applications The PTFE adaptor seals the probe with an Oring and it is encapsulated with rigid potting material and thus is hermetically sealed. Standard output is Pt100 ohm RTD but many other types are available such as 4-20mA, voltage, thermocouple, thermistor and as a switch. The model R48 is inert to virtually all chemical regents offer the highest performance for the most demanding temperature measurement applications.
The model R48 is also available with relay switching outputs, whose functions can be defined as either N/C or N/O. Switching points, alarm types, normal or failsafe mode, and time delay are all programmed by the factory to client specifications. Standard accuracy is to 1°C of switching point or better. An optional 4-20mA output is also available. Standard electrical connection is using a M12 connector. Other connectors and terminations are available; consult factory.
- Metal plating shops
- Aerospace lending gear manufacturers - Paint/Spray bath
- Pharmaceutical and life science industries
- Semiconductor industry - Clean rooms
- Chemical plants
- Food processing plants
- Medical equipment testing facilities
