- Low Cost Design: Ideal for OEM and HVAC applications where larger quantities at lower costs is an issue
- Easy Calibration: Calibration accomplished via 4 push buttons which are located on the electronic unit, non-interacting Zero and Span. No hand-held terminals are required for a fast set-up.
- Consistent Accuracy: Microprocessor-based circuitry means precise level indication. Internal circuitry provides ambient temperature compensation.
- Reliability: Intempco’s exclusive circuitry ensures accurate level indication in applications with light to moderate coatings. No moving parts to break or wear out.
- Housing: Epoxy painted NEMA 4X (IP67) rated aluminum housing
- Mountings and Probes: Many fitting and flange sizes available with various probes to suit different applications available.
Intempco LTX06 Series two-wire Capacitance Level Transmitter provides highly reliable, low cost level indication and control that is suitable for all liquid level applications that do not leave a severe build-up on the sensing element. LTX06 transmitter measures the change in capacitance that occurs as the tank level changes, and outputs a standard loop-powered 4-20mA signal. It uses a very high frequency, very low amplitude sensing circuitry to greatly minimize the effects of coating on the sensing probe.

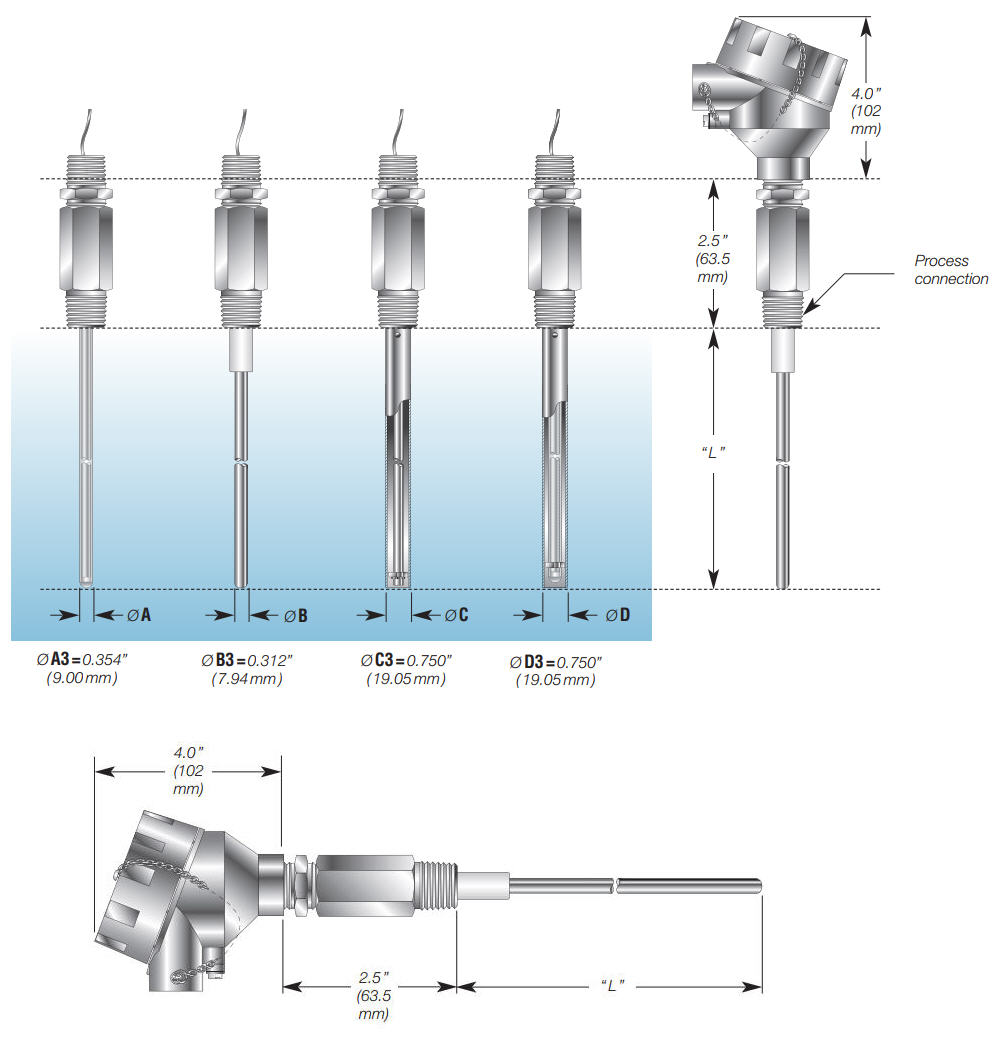

LTX06 is available as an integrally mounted package. A number of level sensing probes can be selected based on the application including bare stainless steel probe, rigid Teflon coated probe and rigid concentric. Available housing is aluminum NEMA 4X.
